The Conversion System for Shorter Fences will allow you to add up to 3′ overall to the height of your existing fence… Now you can use Purrfect Fence to Cat-Proof your fence or wall even if it is only 3′ high!
Have a fence or wall over 5 feet in height? Use the Standard Existing Fence Conversion System to cat-proof fences and walls 5′ or higher!

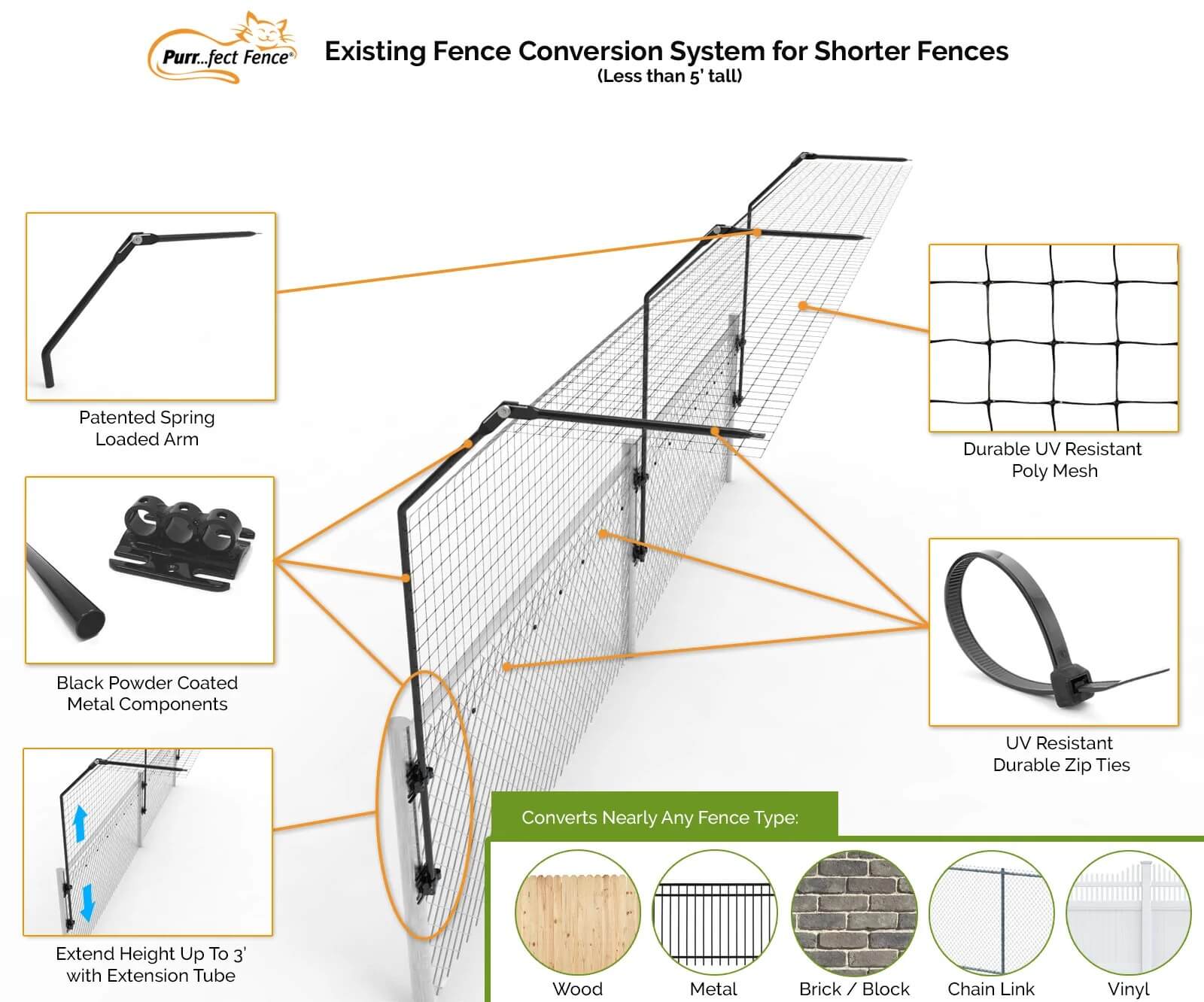

The Conversion System for Shorter Fences will convert your shorter fence into a escape-proof fence for cats. The kits includes Cat-Proofer spring-loaded arms, extender for each arm, the associated mounting brackets and a 6′ tall roll of fence based on the size of kit you choose.
Keep in mind that every fence is different and there are no universally followed guidelines for post spacing, height, materials used,etc. A 50ft kit is designed for the average 50 linear feet of fence. 100 ft kit is designed for an average 100 linear feet of fence. A 200 ft kit is designed for the average 200 linear feet of fence. If you have gates, turns, short or long spans between posts then you may find that you need more or less components than comes with the kit.Â

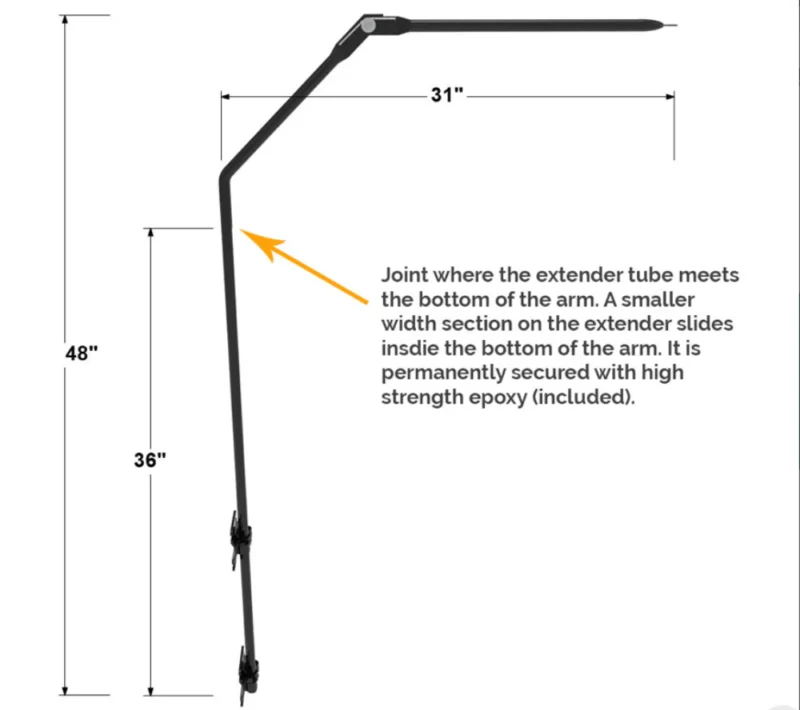

The extension tubes are made of thick 14 gauge steel (an arm set as high as possible on an extension tube can hold well over 50lbs). The scrunched end of the extension tube slides inside of the leg of the Conversion System Arms. The included high-strength epoxy bonds the pieces together. Once glued up, the extended arms slide into two mounting plates spaced a minimum of 3″ apart secured to your fence posts with the top mounting plate set as high as possible on your post. Slide the arm to be at the desired height, tighten a set screw on each plate and your arm is secured to your post. Repeat this for all your posts and the fence material is ready to install.

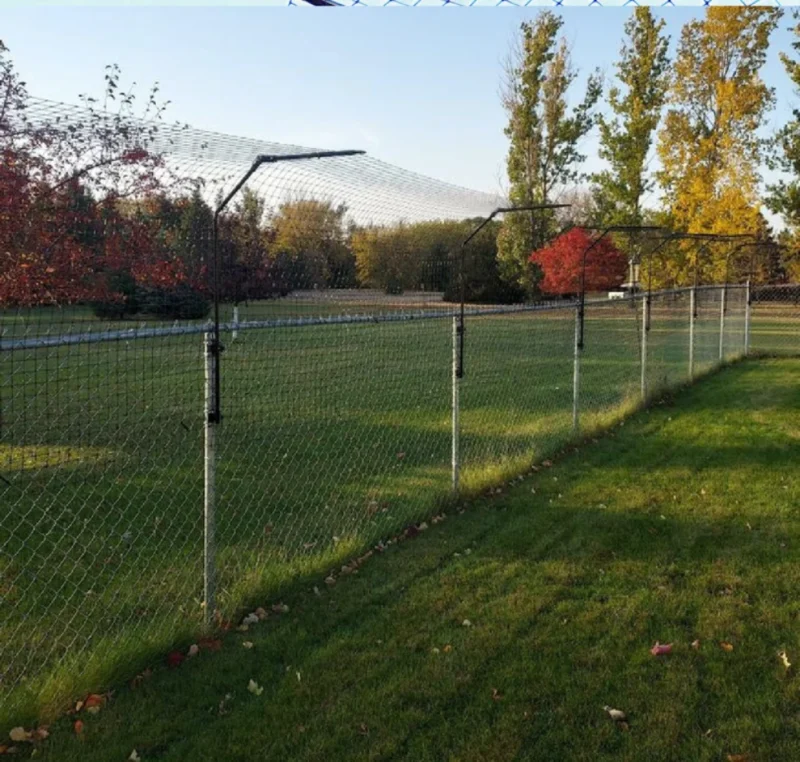

Please note: If the fence is chain link, decorative aluminum or other metal picket fence you will need U-Bolts to secure the mounting bracket to the posts. You can use only one U-Bolt per bracket with this system so purchase one set of U-Bolts per post.
Existing Shorter Fence Conversion System | 50 FT Kit | 100 FT Kit | 150 FTÂ Kit | 200 FT Kit | 250 FT Kit | 300 FT Kit | 350 FT Kit | 400 FT Kit | 450 FT Kit | 500 FT Kit | 550 FT Kit | 600 FT Kit |
Spring Loaded Arms | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
3 Ring Universal Mounting Brackets | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 |
Set Screws | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 |
Extension Tubes | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
6′ 600lbs Break Strength Mesh | 50 FT | 100 FT | 150 FT | 200 FT | 250 FT | 300 FT | 350 FT | 400 FT | 450 FT | 500 FT | 550 FT | 600 FT |
UV Rated Ties (bags) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Arm to Wall/Structure Hardware | 2 Sets | 2 Sets | 2 Sets | 2 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets | 4 Sets |
Written Installation Instructions | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Items of note when planning your order/layout:
-Each existing fence is unique! The maximum span between arms is 12-14 feet. 8-10 Feet is preferred. Count and measure the distance between your posts to ensure that your chosen kit will cover your fence layout.

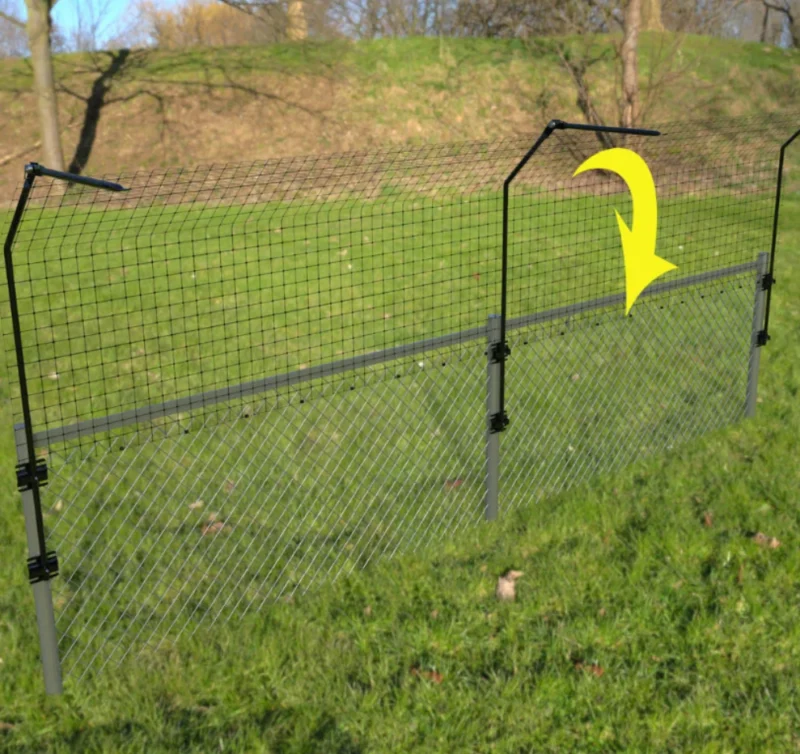

– Keep in mind that our Existing Fence Conversion System for Shorter Fences will provide up to 36″ inches of additional height from wherever the upper mounting bracket is secured. So, if the bracket is mounted at the top of a 4FT fence, then the finished Purrfect Fence height can be as tall as 7FT. This is adjustable and can be set at any height you prefer between 12″ and 36″ above where the uppermost mounting bracket is secured.
–Â Our patented system works by forcing your cat(s) to climb up the fence which activates the spring-loaded arm from the bottom if they are able to reach the top (most are not.) So, for maximum effectiveness, it is important that the finished height of your Purrfect Fence be tall enough so your cat cannot simply leap over it. For most domestic cats the minimum finished height (measured from the ground to the tip of the Purrfect Fence extension) we recommend is 6FT, though we prefer it to be taller when possible. Even so, we have had customers tell us it was effective for their cat(s) at shorter heights. However, higher is always better and may be necessary if your particular cat or cat breed is capable of leaping higher than the average healthy and athletic (domestic shorthair) cat.Â
–Â Fasteners for holding hardware to building/home are not included. Fasteners should be chosen based on the type of material covering the building/wall/fence (wood screw, masonry screw, etc.)
-Gates in your fence line require special consideration. Read below for more information on gate planning and installation.
Chain Link Fence Install Hardware
PVC Fence & Walls Install KitÂ
If you need Installation Contact UsÂ
Gates

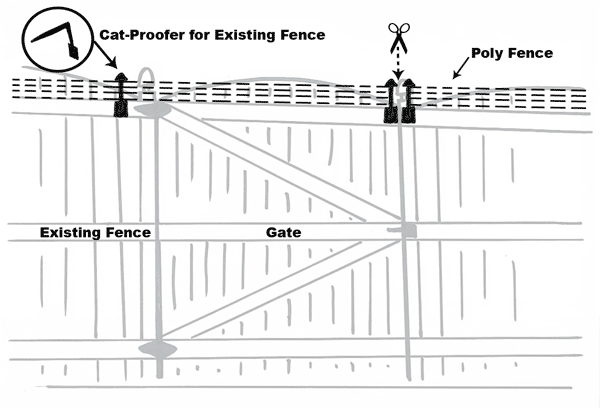

Gates need to be considered separately for your layout plan. Each gate in your existing fence is likely to need additional components depending on the location and operation.
Inward Swinging Gate
Many inward swinging gates require 1-2 extra arm/bracket(s) per gate. Your situation may vary. If you have any questions please contact us.

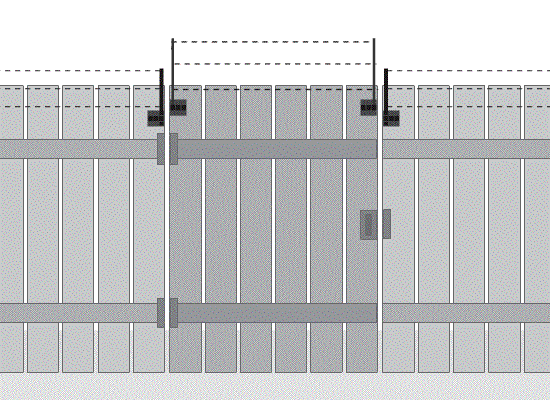

Outward Swinging Gate
Many outward swinging gates require 2-3 extra arm/bracket(s) per gate. Your situation may vary. If you have any questions please contact us.
